Tensile Rubber Conveyor Belt
Belt width sizes 200 mm (= 8 inch ) to 2400 mm (= 96 inch )
REGULAR standard conveyor belts width sizes in different thickness produced (mm) : 500, 600, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000.
Conveying Carrying Capacity of 800 mm width conveyor-rubber-belt is approximately 140 tons per hour at belt speed of 45 meter / minutes.

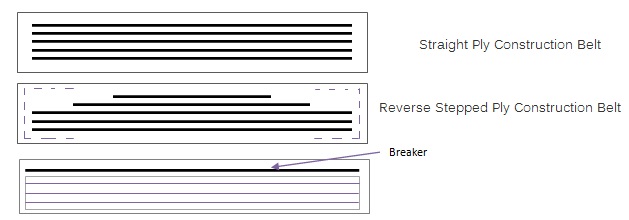

Straight Ply and Reverse Stepped Layers in Rubber Belts
Produced by HIC
Textile ply belt nylon or ep dipped fabric 2, 3, 4, 5, 6 to 12 as per total strength desired STRAIGHT
Nylon fabric ply rubber belts 4, 5, 6, 8 (4/2, 5/3, 6/4, 8/6) REVERSE STEP PLY for submerged ash handling transportation of hot ash in boiler house operating in quenching trough.
Reverse Step Ply conveyor-belt sizes produced in 630/4 (4/2) 4ply, 800/5 (5/3) 5ply, 1250/6 (6/4) 6ply.
EP Nylon Strength Rating Fabric Reinforced Belts
Produced by HIC
Nylon conveyor belts sizes multiply type NN 100 =200/2 (2ply) to NN 315 = 2500 /7, where /2, /3 , /4 represents number of fabric ply reinforcement layers in conveyor-belting.
EP multiply conveyor-belt sizes type Polyester-Nylon ep125 =250/2 to EP 400 = Kn/m 3150 /8
Regular standard sizes of conveyor-belt fabric strength rating types available : 400/2, 315/3, 500/3, 630/3, 500/4, 630/4, 800/4, 1000/4, 800/5, 1250/5, 1600/5, 1000/6 , 2500/7 .
Other in-between belt strength sizes type also produced.
Adequate Load Support for conveyor-belt can be achieved by selecting minimum and above rubber belt width sizes wisely as per belt strength rating corresponding to material bulk density to be conveyed, and, not above maximum belts width sizes recommendations.
Weight of ep belt or nylon fabric belting of 650 mm width of 3 ply-315/3 with 3mm thickness rubber-belt cover Top and 1.5 mm Bottom of 100 meters length equal 600 kg approximately.
Drum pulley conveyor minimum diameter MM 323, 408, 510, 630 be used for respective conveyor belting Ply of 3, 4, 5, 6 , however, select as per belt carcass ply thickness and allowable working tension properly.
Top Smooth Rough Top Chevron Rubber Cover of
HIC Conveyor Belt Produced
Smooth rubber belt surface coating TOP Thickness MINIMUM 3 mm (=1/8”), 4, 5, 6, 7, to 12 mm
Chevron conveyor-belt Diamond pattern Thickness sizes minimum 3 mm to 8 mm
Patterned conveyor-belt YT pattern with 20mm cleat height Thickness sizes minimum 3 mm to 8 mm
Chevron conveyor-belt Corrugated pattern Thickness sizes minimum 3 mm to 8 mm
Cleated conveyor-belt Thickness sizes minimum 3 mm to 8 mm
Power-house boiler Ash handling conveyor-belting minimum 2 mm, 3, 4, 5 mm, as top rubber-cover thickness sizes is usually kept lower than the bottom-rubber due to more abrasion at the back.
Bucket Elevator belting minimum 1.5, 2, 3 mm, as top rubber-cover thickness at bucket side is usually kept lower than the bottom rubber due to more abrasion at the pulley side.
Rough Top conveyor-belt anti-slip Thickness sizes minimum 3 mm to 6 mm.
Frequency Factor minutes to be calculated for selecting conveyor-belt rubber-cover thickness considering belt-Length divided by belt Speed in feet per minutes.
Bottom Smooth Rubber Cover Bare Friction Coat of
HIC Belting Processed
Thickness of Synthetic rubber-belt smooth coating BOTTOM MINIMUM 1.5 mm (=1/16”), 2, 2.5, 3, 4, 5 to 10 mm.
Ash handling belting minimum 3 mm, 4, 5 mm, as bottom rubber-cover thickness sizes is usually kept More than the top rubber due to more abrasion at the back than the face rubber carrying ash.
Elevator belt minimum 3, 4, 5 mm, as bottom rubber-cover thickness at pulley side thickness is usually kept More than the top rubber due to more abrasion at the pulley side than top which is bucket side.
Conveyor-belting with bare bottom and rubber frictioned surface coating at bottom also produced for tire industries and sugar bagasse conveying belt conveyor application.
Breaker Ply Stacker Impact Damage Protect Conveyor-Belt
Produced by HIC

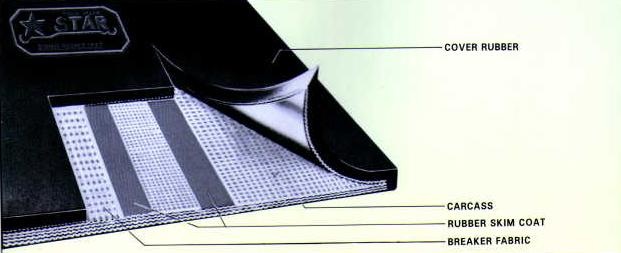

Polyamide breaker in rubber conveyor belts 1 or 2 number on FACE, BOTTOM and EDGES for added stacker high impact resistance manufactured used by quarry crusher equipment manufacturers of HIC make Universal brand rubber belt located in Cuzco Argentina, Florida USA, Balzers Liechtenstein, Dhaka Bangladesh, Hazelton Pennsylvania USA, Minas Gerais Brazil, Avenza Carrara Italy, Lincoln County USA, Belmopan Belize, Machu Picchu Peru South America, Shillong Meghalaya, Hyderabad Andhra, Angul Orissa, Mughalsarai UP, Kota Rajasthan of India, suggested where rocks, gravel, and other materials fall from good height to prevent damage.
Edges Manufactured Construction of
HIC EP Nylon Multi-Ply Conveyor-Belts
CUT edges type conveyor-belts as a standard manufactured with black rubber-paint, having no implication in the performance, being nylon or EP textile ply are rot-proof.
Rubber-conveyor belting, however, also produced in edges type BONDED or MOULDED when seldom essential for particular application needs above 800 mm belting width only on extra cost.
