Air Compressor Rubber Hose Pipes Manufacturers

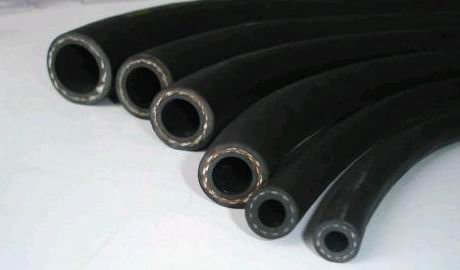

Rubber Hose Air Compressor HIC Universal

Air Compressor rubber hose pipe manufactured in blended synthetic SBR and RMA rubber tube reinforced with braided synthetic yarn or rubberised textile woven fabric plies used as general purpose air hose for multipurpose air delivery & field repairable in service stations for automotive tyres inflation, road building, construction sites for low pressure air carrying from surface compressor application supplied exceeding IS 446 T1 standards produced by HIC Universal India exporters of rubber air hoses to Nepal, South Africa, USA, Nigeria, China, Italy, Australia, Malaysia, Germany, Singapore, Greece, Turkey, Argentina, South Korea, Fiji, Indonesia, Saudi Arabia, Yemen, Egypt, UAE, Tanzania, Guinea, Ecuador, Bolivia, Namibia, Sri Lanka, Philippines, Russia, UK, Venezuela.

Air Compressor Hose 7 bar as per IS446 Type1 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
10, 12.5, 19, 25

Till 1"
7

(=100 psi)

Test Pressure 2 : 1

Blended synthetic SBR and RMA rubber tube, abrasion resistant High Tensile abrasion resistant blended Synthetic rubber; Plain Wrap
BLACK color
Braided synthetic yarn Or rubberised textile woven fabric plies 28

- 30ºC to + 70ºC

Safety Factor
4 : 1

* Roll Lengths manufactured are 100 meters Max (= 328 feet Approx.) of Braided hoses and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Quick Release Air Couplings in CS or SS304 material and any other customized end connections duly fitted with hose pipe also supplied.
