Sand Blasting Static Dissipative Rubber Hose Manufacturers

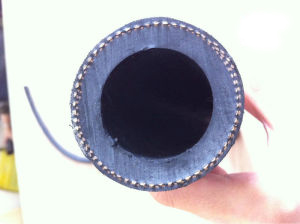

Rubber Hose Sand Blasting Pipe HIC Universal

Sand Blasting Static Dissipative rubber hose pipe manufactured in blended Natural and synthetic SBR rubber tube reinforced with high tensile multiple plies of synthetic textile with a copper wire that prevents static build-up & reduces potential for explosions while transfer of sand or other abrasive materials used as static dissipating sand blast hose for clean, condition or strip cement, steel, stone and other materials in shipyards, construction industries for blasting castings, metal, and concrete surface application supplied as per HIC’s standards produced by HIC Universal India exporters of sandblast hoses to Hong Kong, UAE, China, Netherlands, Germany, Singapore, Japan, Australia, USA, South Korea, Philippines, Canada, Russia, Libya, Iran, Sri Lanka, Ukraine, Azerbaijan, Indonesia, UK, Finland.

Sand Blasting Static Dissipative Hose 10 bar as per IS5894 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
19 x 33OD,
25x 40OD,
32 x 48OD,
38 x 54OD,
51 x 71OD,
80 x 105OD,
102 x 127OD

Till 4”
10
(=150 psi)

Test Pressure 1.5 : 1

NR natural and Synthetic SBR rubber blended, Static Dissipative of high thickness; high abrasion resistant Natural and SBR Synthetic rubber blended, Heavy wall thickness to provide Kink resistance, Weather & abrasion resistant ; Smooth Fabric Marked Wrapped
BLACK color
High Tensile multiple synthetic textile plies & a copper wire to prevent static build-up 30

- 20ºC to + 75ºC

Safety Factor
3 : 1

* Roll Lengths manufactured are 10 meters Min. (= 33 feet Approx.) and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Crimped / Clamped Flanges as per Class ASA150, BS 10 Table D/E in MS or SS304 material or Camlock Couplings and any other customized end connections duly fitted with hose pipe also supplied.

**** Working Pressure 7 bar,15 bar rating and till 6” NB sizes also produced.
