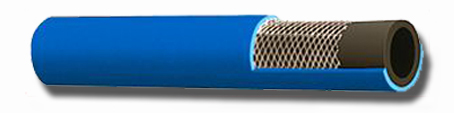

Rubber Hose Oxygen Welding Pipe HIC Universal

Welding Oxygen rubber hose pipe Blue Color cover manufactured in blended synthetic SBR and RMA rubber tube reinforced with braided synthetic yarn or rubberised textile woven fabric plies used as industrial oxygen hose for heating & cutting oxygen gas or other non-combustible gases in steel mills, repair workshops for oxygen-fuel gas welding & cutting application supplied exceeding IS 447, DIN 8541 standards produced by HIC Universal India exporters of rubber welding hoses to Luxembourg, Germany, South Korea, Japan, South Africa, Australia, Indonesia, Belgium, Nigeria, China, Italy, Greece, Turkey, UAE, Paraguay, Russia.

Welding Oxygen Hose 18bar as per IS447 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
8 x 16.3OD
10 x 18.5OD

Till 3/8”
18
(=255 psi)
Wall Thickness: 4mm

Test Pressure 2 : 1

Synthetic SBR and RMA rubber blended tube, non-combustible gases resistant & fuel gas i.e., Oxygen resistant in particular UV, ozone & abrasion resistant Natural and Synthetic rubber blended; Smooth or Fluted Top
BLUE color
Braided synthetic yarn Or rubberised textile woven fabric plies 70

- 10ºC to + 50ºC

Safety Factor
4 : 1

* Roll Lengths manufactured are 120 meters Max (= 394 feet Approx.) of Braided hoses and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.
